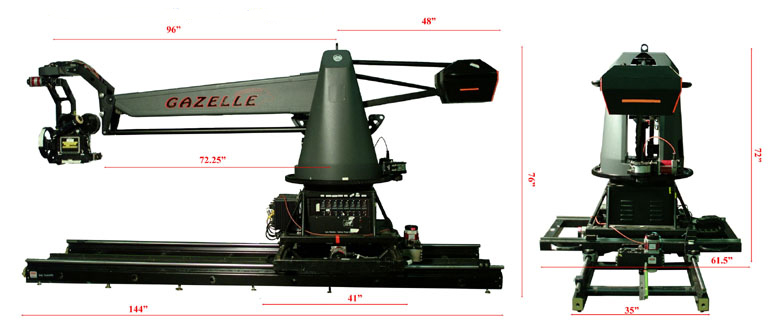

Gazelle Specifications:



Degrees of Motion

Pan/Tilt/Roll     360 degrees

Boom              +45/-30

Arm Swing       360 degrees

Traverse           27 inches







     Axis Parameters



Pan            90 Degrees/second

Tilt              60 Degrees/second

Swing         30 Degrees/second

Boom           4 Feet/second

Track            4 Feet/second

Traverse       2 Feet/second

     Arm



Length                 6 feet

Camera Height  11.5 foot maximum

(overslung)
